MAXXDRIVE industrial gear units from NORD DRIVESYSTEMS are designed to handle heavy-duty applications such as bucket elevators, agitators, conveyor belt drives, mixers, mills, drums, crushers, and more. The product family is available in a parallel shaft design as well as a right-angle design. Constructed according to the UNICASE™ housing principle in which all bearings and seals are contained within a single casting, the robust gear units are optimized to ensure excellent load capacity, long service life, long bearing life, quiet operation, and are lower in weight than jointed housing gear units. The industrial gear units additionally offer many modules, input options, and output options for high versatility and adaptability to a wide range of applications. MAXXDRIVE industrial gear units offer a unique combination of flexibility and durability. They feature mounting surfaces on six sides of the drive for versatile mounting configurations and flexible integration into installation spaces. As a standard, the gear units are equipped with an efficient NBR or FKM sealing system that is suitable for many environments. For specific ambient conditions, optimized sealing systems incorporating gamma-ring, labyrinth, and Taconite seals are also available. Standard compact MAXXDRIVE industrial gear units include MAXXDRIVE parallel industrial gear units and MAXXDRIVE right-angle industrial gear units. MAXXDRIVE parallel industrial gear units have 11 case sizes to choose from and offer a torque range up to 2,495,900 lb-in, performance up to 8,075 hp, and 2-stage or 3-stage gearing options. MAXXDRIVE right-angle industrial gear units also have 11 case sizes available but in 3-stage and 4-stage gear reductions with output torque up to 2,301,200 lb-in and performance up to 2,850 hp. Both designs are extremely durable thanks to UNICASE housings and high precision bevel gearing. High quality, low friction bearings and large center distances ensure significant load capacity and reliable automation. Reinforced output bearings with a spread bearing design and dry cavity are also available for applications requiring increased bearing load capacities and additional oil leak protective measures such as agitators or mixers. MAXXDRIVE XD parallel gear units have 10 case sizes available in 3-stage or 4-stage reductions and like the MAXXDRIVE parallel gear units, deliver output torque up to 2,495,900 lb-in and performance up to 8,075 hp. These industrial gear units are engineered to meet the special requirements of crane and hoist applications, featuring a center distance increased by 35% compared to the compact MAXXDRIVE series. This extended distance enables maximum space for the motor and rope drum to be on the same side of the gearbox in a unique U-shaped arrangement ideal for lifting gear drives. The housings are FEA-optimized for overhung load, especially downwards forces, and include an inspection cover on top of the unit for easy maintenance and service access. Both 3-stage and 4-stage versions feature the same overall unit dimensions and center distances for a standardized design that reduces system variants and lowers the Total Cost of Ownership (TCO). MAXXDRIVE XT industrial gear units have been designed especially for applications requiring high speed ratios in combination with high powers. They offer a 2-stage, right-angle gear unit with a unique housing geometry optimized to achieve maximum thermal capacity. An efficient cooling fin design helps dissipate heat faster while an axial fan and air guide covers enhance airflow to prevent the unit from overheating at maximum power. Thanks to their effective cooling abilities, these drives provide a robust solution in environments with demanding ambient conditions and large temperature fluctuations. The right-angle design additionally enables a symmetrical configuration for mirror image installations where space is limited and can also be mounted on a swing base depending on the application. In addition to standard MAXXDRIVE options, NORD also offers an Endurance Package combining several protective measures that ensure drives will withstand challenging environments, such as those within the Grain industry. The five main components of the package include a drying agent filter, oil sampling point, quick fit filter trolley connection, oil inspection glass, and an additional quick fit filter trolley connection with an oil drain cock. Learn more about the power of MAXXDRIVE industrial gear units at www.nord.com. About NORD DRIVESYSTEMS® Group With more than 4,900 employees, NORD DRIVESYSTEMS has been developing, producing, and selling drive technology for over 50 years, and it is a global leader among full-service providers in the industry. In addition to standard drives, NORD delivers application-specific designs and solutions for special requirements, such as energy-saving drives or explosion-protected systems. NORD has subsidiaries and sales partners in 80 countries worldwide. The dense sales and service network guarantees optimal availability, enabling short delivery times, and customer-oriented service. NORD produces a very diverse range of drives for torques from 88 lb-in to more than 2.5 million lb-in, provides motors in the power range of 0.16 – 1,341 hp, and manufactures frequency inverters with the required power electronics of up to 200 hp. Inverter solutions are available for conventional control cabinet installations as well as for decentralized, fully-integrated drive units. Visit nord.com.

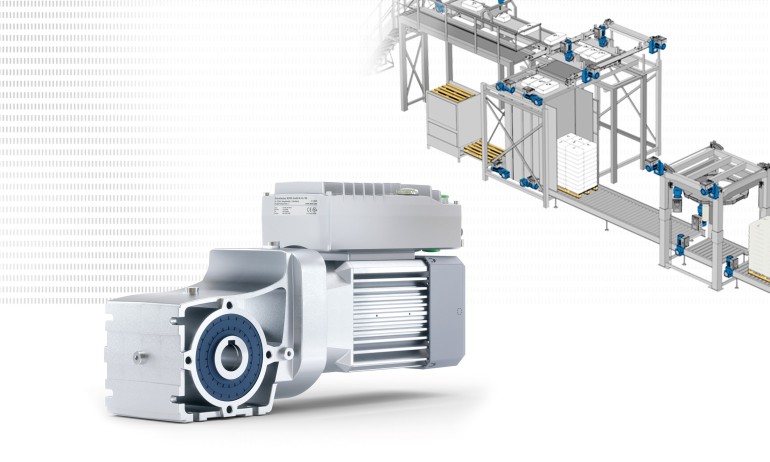

NORD DRIVESYSTEMS delivers reliable, high efficiency automation solutions to a wide range of industries. Their modular product portfolio of over 20,000,000 standard components includes gear units, electric motors, and electronic control products that offer versatility and flexibility for easy adaptation to application requirements. NORD supports the post and parcel industry with high-efficiency drive solutions optimized for reliable, low-maintenance operation. Standardized LogiDrive complete drive solutions are often selected for these applications as they provide a gear unit, motor, and variable frequency drive that can be configured to meet precise specifications. Their modular design incorporates Plug-and-Play technology for easy installation and enables all components of the drive to be individually serviced, minimizing maintenance, downtime, and repair costs. Sorters, belt conveyors, curved conveyors, and lifters employ two-stage NORDBLOC.1 helical bevel gear units paired with IE4 or IE5+ permanent magnet synchronous motors and NORDAC LINK variable frequency drives, while merger applications use UNICASE helical inline gear units to accommodate their particularly high dynamics and speeds. Both compact solutions provide high-efficiency, fast ramp times, smooth automation, long service life, and quiet operation. Baggage handling systems often incorporate hundreds of gear motors that work together to efficiently move baggage from one end of the airport to the other. They must be precise, reliable, and customizable with sophisticated electronic controls to ensure the highest level of performance and energy efficiency. With high quality drive systems that combine gear motors with integrated distributed controls, NORD DRIVESYSTEMS provides both a reliable and cost-effective solution that meets the special requirements of the industry. These solutions typically consist of UNICASE helical bevel gear units or two-stage NORDBLOC.1 helical bevel gear units paired with high efficiency IE3 or IE5+ motors and NORDAC FLEX variable frequency drives. The decentralized modular design is beneficial for maintenance while M12 quick disconnect receptables simplify the installation process and cut down on complicated wiring systems. Each NORD motor frame size has several available brake sizes, a multitude of options, and integrated dynamic brake control for rapid starting and stopping of the conveyors as baggage travels through the system. Additionally, their brake motors with distributed control AC drives have the brake rectifier integrated directly into the drive, eliminating the need for standard brake rectifiers and associated brake control relay circuits. When it comes to the packaging industry, continuous running of automation systems is a high priority. All technology and drives must be well-balanced and have a high level of stability to meet production goals. For bottling plants that require multiple systems for preparation, filling, and packaging, NORD offers UNICASE worm gear units, UNIVERSAL SI worm gear units, and UNIVERSAL SMI worm gear units paired with NORDAC PRO SK 500P variable frequency drives. These centralized VFDs enable precise adjustment of speeds to avoid faults from bottles falling over during conveyance. They also deliver the high speeds and precision control required during the sealing process. An integrated multi-protocol Ethernet interface allows for remote maintenance tools, control, and online inspection of the entire system to check for faults and evaluate data from all drives in the plant. The food and beverage industry has a wide range of machines that perform specific automated tasks such as food separators, belt coating systems, and pipes that pump liquid pastes into mixers. NORD delivers robust drive technology for these specialized systems and adheres to strict hygiene standards with options including food-grade lubrication, stainless steel shafts, IP69K-rated washdown protection, and more. Their UNICASE helical bevel gear motors deliver efficient, reliable automation for separators and belt systems with durable, wear-free gear teeth, high axial and radial load capacities, and low maintenance for reduced downtime. NORDBLOC.1 helical inline gear units are an ideal solution when it comes to pump applications thanks to their large bearings that provide exceptional strength, durability, and minimal wear from radial and axial forces. For food and beverage applications that require electronic controls, NORD offers NORDAC ON/ON+ variable frequency drives with integrated multi-protocol Ethernet interface for easy integration into modern automation systems. Their housings are made from robust aluminum alloy with an IP protection class up to IP66, making it suitable for harsh environmental conditions. These drives can additionally be operated in temperature ranges from -22°F (-30°C) to +104°F (+40°C), making them ideal for both deep-freeze and high-heat applications. With their widespread industry knowledge, application expertise, and global sales and technical support, NORD DRIVESYSTEMS delivers complete drive solutions from a single source configured to meet the most specialized of automation system needs. Visit www.nord.com to learn more.
NORD DRIVESYSTEMS is a global manufacturing leader with customer-focused support available when and where customers need it. Thanks to its vast sales and service network active in 80 countries, NORD can overcome common challenges such as alignment with international technical standards and efficiency requirements, as well as language and cultural barriers, all while maintaining a personalized, local feel. Every NORD customer receives added value with complete support before, during, and after the sale and accessing the U.S. service and support teams is now even easier with one convenient phone number: 888-314-6673. Non-emergency customer support is available via telephone Monday through Friday from 7:00 a.m. – 7:00 p.m. Central Time. After hours, NORD is always on call with emergency breakdown service available 24/7/365 to resolve issues quickly and get operations back up and running with minimal downtime. In addition to phone support, NORD has a wide range of additional options to provide individualized service to their customers. Fast, accurate service is paramount for NORD and is the focal point of their service structure. In the U.S. market, NORD has 4 state-of-the-art production plants located in Charlotte, NC, Corona, CA, McKinney, TX, and Waunakee, WI. These facilities not only manufacture drive solutions but also feature a full staff of customer experience, engineering, and service technicians dedicated to assisting customers from product selection to routine system maintenance. In addition to its own production and assembly facilities, an extensive network of over 500 experienced, knowledgeable, and dedicated distributor partners are available throughout North America that serve as an extension of NORD’s internal service teams. Five of these partners are designated as authorized service providers, offering customers the same level of service as NORD’s own facilities. NORD’s sophisticated supply chain is also able to access inventory worldwide, allowing for global availability and fast delivery of both standard and expedited products in many cases without additional fees. NORD provides presales support with tools, training, engineering assistance, technology and logistics project development, and a documentation center with technical and operational resources. Customers work with a dedicated District Sales Manager located in their region for fast response time and a bridge to support teams, but also have the freedom to contact them directly when needed. They can access the myNORD Online Customer Portal at their convenience to select and configure products with account-specific pricing. NORD’s online customer portal also allows fast, accurate viewing of order status, access to 2D/3D dimensional drawings and documentation, as well as functions for easy collaboration with colleagues and NORD experts. Additionally, replacement components and parts can be ordered via the Spare Parts eShop with free standard shipping on orders over $25. NORD’s website also offers direct access to information needed to select, install, commission, and maintain NORD products with a comprehensive collection of product documentation and literature including user manuals, catalogs, industry solution flyers, spare part information, software, unit drawings, certificates, forms, and more. In addition to presales assistance, NORD also offers in-depth aftermarket service and support that provides customizable solutions to effectively maintain drive technology for maximum performance and return on investment. Various services are available including installation and commissioning assistance, on-site analysis, repair cost estimates, and product training. Combined with phone support, online resources, and emergency breakdown service, NORD can provide rapid assistance to get important systems back up and running. Emergency breakdown service covers all product lines, is available to all customers whether they have an active service agreement or not, and can be reached at the same convenient phone number: 888-314-6673. If a new unit or spare parts are needed, NORD will coordinate delivery of in stock spare parts and replacement drives via direct courier for prompt resolution. NORD can also provide diagnostics, error analysis, and expert repair or replacement of drives. Recently added to NORD’s service program is their Inverter Testing Lab. This new service allows NORD to test proposed configurations to confirm they meet performance requirements, as well as evaluate issues within existing systems. Technicians specializing in electronic control technology set up mock applications to simulate real-world parameters, giving valuable insight into anticipated behaviors or recreation of issues to determine root causes during the troubleshooting process. This specialized team can also assist with setting up automation connection via communication protocols. NORD continues to innovate and make investments that directly benefit and bring added value to their customers. It is through this customer-oriented mindset that the company builds trust and helps to support the advancement of drive technology now and into the future. About NORD DRIVESYSTEMS® Group With more than 4,900 employees, NORD DRIVESYSTEMS has been developing, producing, and selling drive technology for over 50 years, and it is a global leader among full-service providers in the industry. In addition to standard drives, NORD delivers application-specific designs and solutions for special requirements, such as energy-saving drives or explosion-protected systems. NORD has subsidiaries and sales partners in 80 countries worldwide. The dense sales and service network guarantees optimal availability, enabling short delivery times, and customer-oriented service. NORD produces a very diverse range of drives for torques from 88 lb-in to more than 2.5 million lb-in, provides motors in the power range of 0.16 – 1,341 hp, and manufactures frequency inverters with the required power electronics of up to 200 hp. Inverter solutions are available for conventional control cabinet installations as well as for decentralized, fully-integrated drive units. Visit nord.com.
